Compact 9mm Muzzle Device for the Dead Air Xeno System

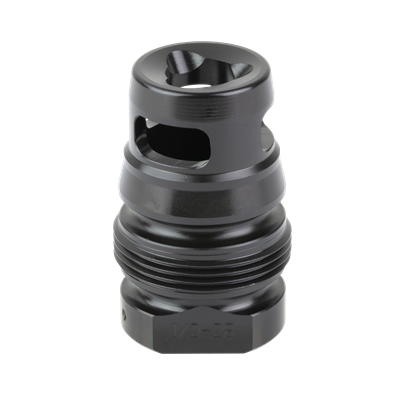

The Dead Air DA125 Xeno Pistol Wee Brake is a compact firearm-side muzzle device designed to connect a 1/2x28 threaded, 9mm-bore host to Dead Air's Xeno threaded-taper suppressor mounting system.

Its short “Wee Brake” profile makes it particularly well suited to 9mm pistol-caliber carbines, subguns and other fixed-barrel hosts where the shooter wants a compact suppressor mounting interface without leaving a large muzzle device on the firearm when the silencer is removed.

Dead Air's current accessory fitment guide identifies exact part number DA125 as the Xeno Pistol Wee Brake with 1/2x28 host threads and a 9mm bore.

1/2x28 Threads with a 9mm Bore

The DA125 threads directly onto compatible barrels using the common 1/2x28 thread pattern.

Unlike many 1/2x28 rifle muzzle devices that are bored specifically for .223 / 5.56 projectiles, the DA125 incorporates a 9mm through bore, making it appropriate for compatible 9mm fixed-barrel hosts.

Always verify the firearm's actual muzzle thread, projectile diameter and suppressor-system compatibility before installation.

Why Xeno Uses a Threaded Taper

The Xeno system combines mechanical threads with a precision taper rather than relying solely on the threads to locate and retain the suppressor.

As the suppressor assembly is tightened onto the muzzle device, the mating taper provides the final seating surface. This architecture is designed to provide a solid, repeatable suppressor interface while helping isolate the mounting threads from carbon and combustion residue.

Dead Air describes Xeno as a lightweight thread-to-taper suppressor mounting system intended to provide repeatability and a solid return to zero.

Left-Hand Xeno Threads Help Prevent the Muzzle Device from Backing Off

One of the most useful features of Xeno is easy to miss from photographs: the suppressor-side Xeno interface uses left-hand threads.

The DA125 still installs onto the firearm's barrel using conventional 1/2x28 right-hand barrel threads, but the external Xeno interface that connects to the suppressor adapter is left-hand threaded.

This opposing thread direction is intentional. Dead Air designed Xeno so that removing the suppressor works against the direction that would normally loosen the muzzle device from the barrel.

In practical terms, the suppressor should come off the Xeno muzzle device rather than taking the muzzle device with it.

The DA125 Is Only the Firearm Side of the Xeno System

The DA125 does not by itself convert a suppressor to Xeno.

A compatible Xeno suppressor adapter must also be installed in the suppressor. The correct adapter depends on the suppressor's rear mounting interface.

For example, Dead Air's DA455 Xeno Adapter is the HUB / R-Series version used with appropriately compatible suppressors featuring the common HUB mounting interface. Dead Air has also produced the DA457 P-Series Xeno Adapter for compatible P-Series applications such as the Wolfman.

Always match the suppressor adapter to the suppressor itself and confirm that the suppressor bore and caliber rating are appropriate for the firearm.

A Natural Match for the Dead Air Wolfman

The DA125 is particularly interesting for a 9mm PCC equipped with a Dead Air Wolfman.

With the correct P-Series Xeno adapter installed in the Wolfman, the Wee Brake provides a compact fixed-barrel mounting solution that allows the suppressor to move between appropriately configured Xeno hosts without replacing the firearm-side mounting system each time.

This is a different mounting strategy from a conventional 3-lug. The Xeno uses a threaded taper rather than the spring-loaded lug interface normally associated with PCC suppressor mounts.

Threaded Taper Rather Than a Conventional QD Latch

Xeno is often casually described as a “QD” system because the suppressor can be installed and removed without unscrewing the muzzle device from the firearm.

Mechanically, however, it is more accurate to call Xeno a threaded-taper mounting system.

There is no ratchet, locking collar or spring-loaded latch. The suppressor threads onto the muzzle device and seats against the taper.

That simplicity is part of the appeal: relatively few moving parts, positive mechanical engagement and a compact firearm-side muzzle device.

Important: Fixed-Barrel Suppressor Application

Despite the name “Pistol Wee Brake,” the DA125 should not be confused with a suppressor piston or Nielsen-device mount for a conventional recoil-operated handgun.

A typical Browning-style tilting-barrel pistol requires an appropriate booster / piston assembly for normal suppressed operation. Rigidly mounting a suppressor through Xeno does not substitute for that required movement.

The DA125 is therefore most naturally suited to fixed-barrel 9mm applications such as PCCs, subguns and similar hosts when used as a suppressor mount.

Compact When the Suppressor Comes Off

One practical advantage of the Wee Brake is what remains on the firearm after the suppressor is removed.

Rather than leaving a large brake or long multi-prong flash hider at the muzzle, the DA125 maintains a relatively compact profile. This is useful on short PCCs and compact fixed-barrel firearms where minimizing overall length and snag points is part of the reason for choosing the platform.

Part of a Broader Xeno Muzzle-Device Family

Dead Air currently catalogs several Xeno muzzle-device configurations for different host threads and bore requirements.

The Pistol Wee Brake family includes:

• DA125: 1/2x28 – 9mm bore
• DA126: 5/8x24 – 9mm bore
• DA135: M13.5x1 LH – 9mm bore

This listing is specifically for DA125 — 1/2x28 with a 9mm bore.

Verify the Entire Mounting Chain

Suppressor mounting is a system, not just a thread-size question.

Before firing, confirm all of the following:

• The firearm barrel uses 1/2x28 threads
• The projectile is compatible with the DA125's 9mm bore
• The suppressor uses the correct Xeno adapter
• The suppressor itself is rated for the cartridge being fired
• The host is appropriate for a rigid suppressor mounting system
• Suppressor-to-bore alignment is correct before live fire

Dead Air specifically warns users to ensure that both the suppressor adapter and muzzle device are caliber compatible.

A Clean Xeno Solution for a 1/2x28 9mm Host

For a shooter already invested in the Xeno ecosystem, the DA125 provides a straightforward way to add a 1/2x28 fixed-barrel 9mm host without resorting to an oversized rifle muzzle device.

Its combination of a 9mm bore, compact brake profile, threaded taper and left-hand Xeno interface makes it particularly useful for suppressed PCC configurations where secure mounting and minimal muzzle bulk matter.
